Industrial TYP38C4 110.644 3＊400V 15KW ceramic heating element for LE 10000HT welding machine on papercup pearl cotton making

Home / Product Center >> dia 85mm >> Industrial TYP38C4 110.644 3＊400V 15KW ceramic heating element for LE 10000HT welding machine on papercup pearl cotton making

Name:	Industrial TYP38C4 110.644 3＊400V 15KW ceramic heating element for LE 10000HT welding machine on papercup pearl cotton making
Diameter:	85mm
Voltage:	3＊400V
Power:	15KW

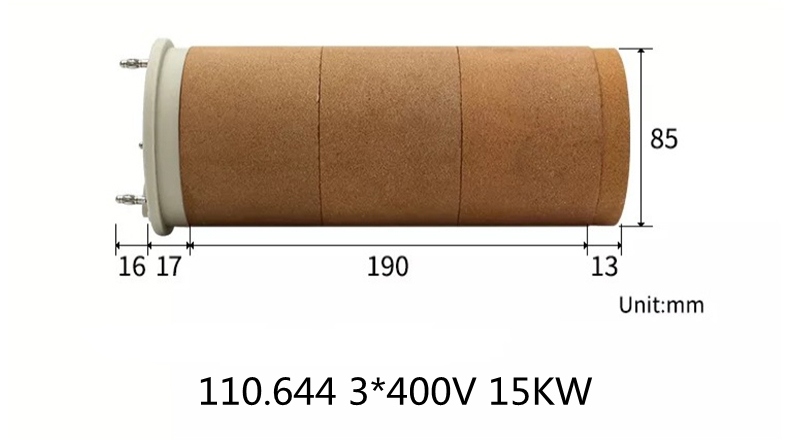

Heat Length:	190mm
Total Length:	218.5mm
Resistance:	Kanthal
Order No.:	110.644/ TYP38C4
Application:	for Leister hot air gun
OEM:	Yes
Transport:	By express or by sea
Lead time:	3 working days after got the payment
Weight;	2kg

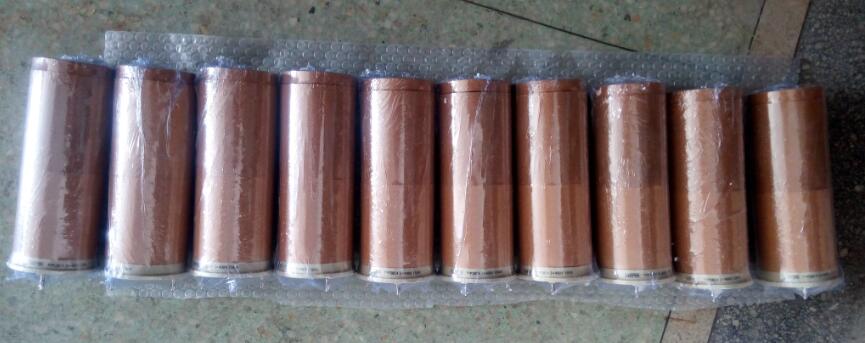

Package:	carton box(for small order) / wooden box(for bulk order)

Product Description

Industrial TYP38C4 110.644 3*400V 15KW ceramic heating element for LE 10000HT welding machine on papercup pearl cotton making

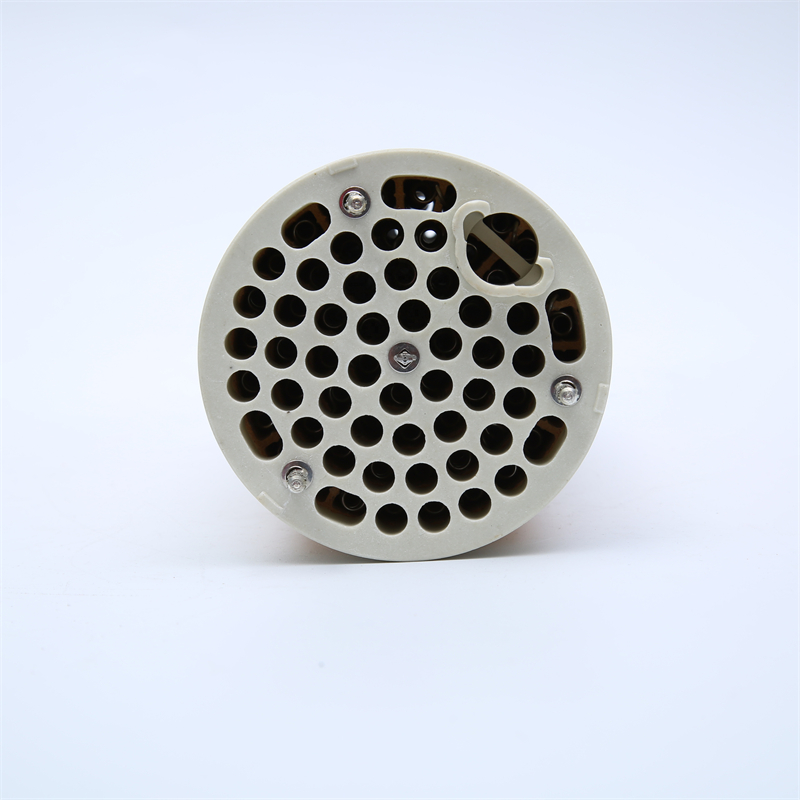

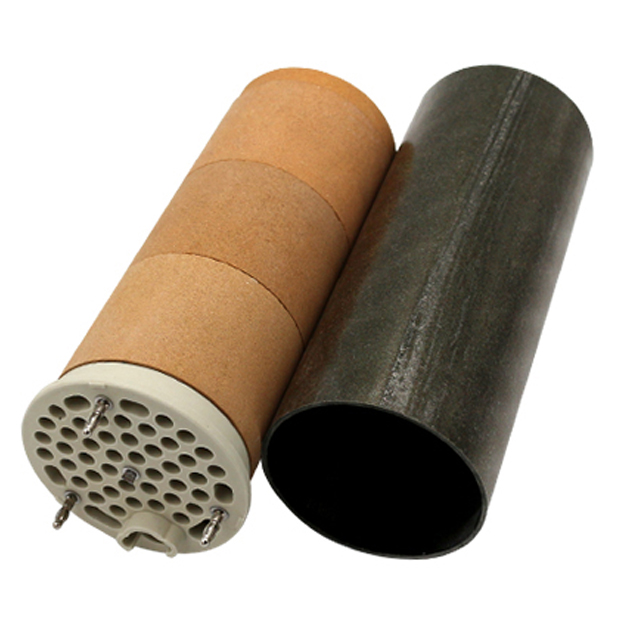

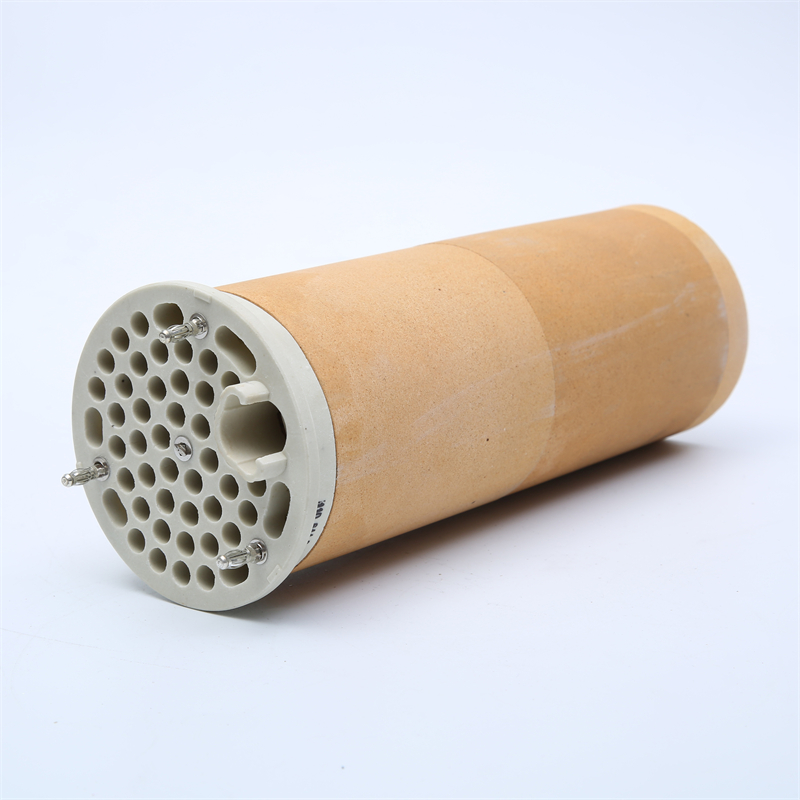

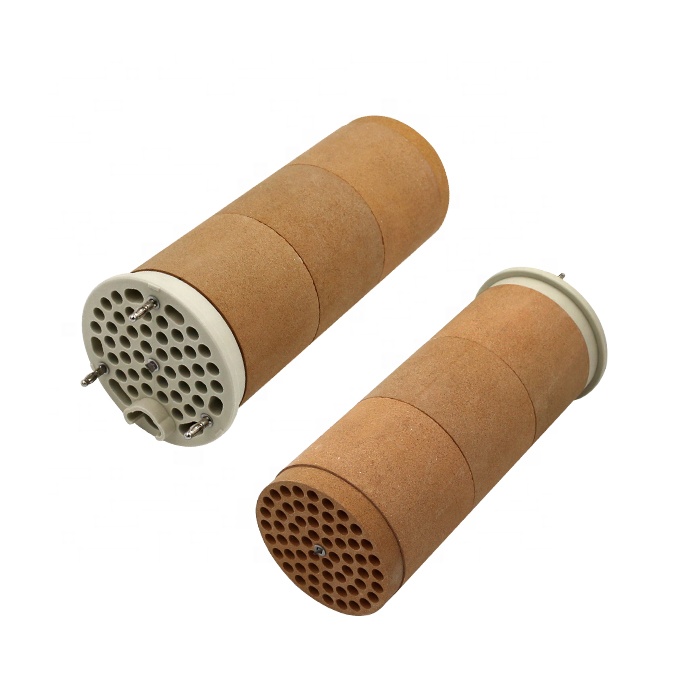

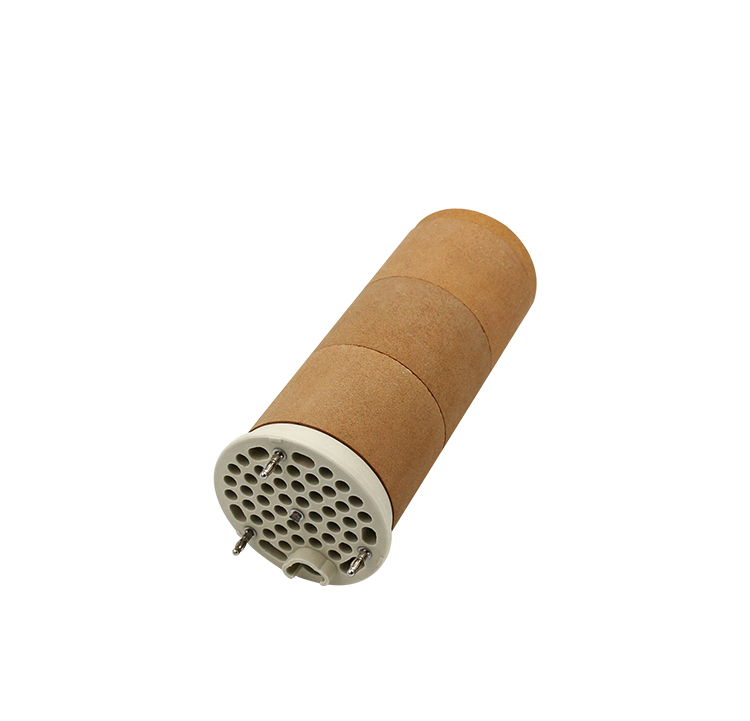

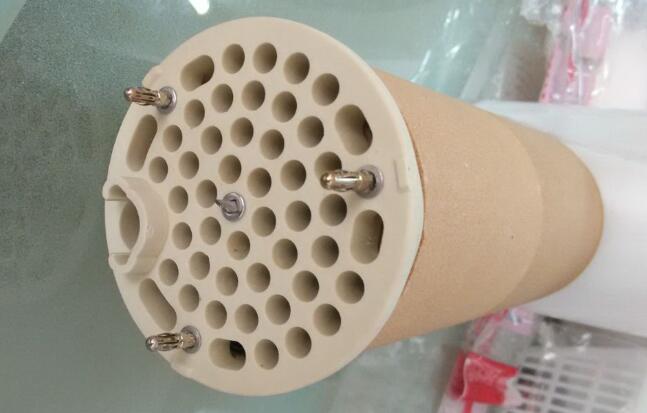

Product pictures

Main Features

Quick raising temperature and heating speed
No bright, anti-oxidation, corrosion resistant, acid-proof
Small volume and high insulation property
High heating efficiency and long use-life
Ceramic material can resist 1400 degree C
Swedish Brand Heating Wire
Pin Pure copper plating with spring, fix firmly
Voltage, power and size can be customised

Application

It is widely used in air blower, warm air direr, dry line machine, plastic welding gun, line blower, shoes machine , canister blower etc kinds of air heating device, and medicine, leather, shoes making, hand snack, chemical industry etc.

More similar products

For diameter 85mm heating elements, the types are following:

DIA 85mm
#	Item No.	Voltage	Power	Diameter	Total Length
1	100.193	3*380-480V	3*3.3-5.3KW	85mm	146mm
2	102.677	3*380-480V	3*1.7-2.7KW	85mm	146mm
3	102.684	3*400V	3*5500W	85mm	146mm
4	102.730	3*230V	3*3.3KW	85mm	146mm
5	110.644">110.644	3*400V	15KW	85mm	220mm
6	113.434	3*480V	15KW	85mm	220mm
7	114.652	3*400V	15KW	85mm	220mm
8	115.214	3*400V	18KW	85mm	220mm
9	117.618	3*400V	16KW	85mm	150mm
10	123.233	3*400V	11KW	85mm	150mm
11	142.084	3*400V	11KW	85mm	135mm
12	143.504	3*400V	16KW	85mm	135mm
13	143.506	3*480V	16KW	85mm	135mm
14	TYP38B8	3*380-480V	3*3.3-5.3KW	85mm	146mm
15	TYP38C4	3*400V	15KW	85mm	220mm
16	TYP38K6	3*380-480V	9.9-13.3kW	85mm	146mm
