| Name: | 142.717 230V 1550W heating elements for Leister Triac ST hot air gun |
| Diameter: | 26mm |
| Voltage: | 230V |
| Power: | 1550W |
| Heat Length: | 68mm |
| Total Length: | 90mm |
| Resistance: | Kanthal |
| Order No.: | 142.717 |
| Application: | for Leister hot air gun |
| OEM: | YES |
| Transport: | By express or by sea |
| Lead time: | 3 working days after got the payment |
| Weight; | 0.1kg |
| Package: | carton box(for small order) / wooden box(for bulk order) |
142.717 230V 1550W heating elements for Leister Triac ST hot air gun

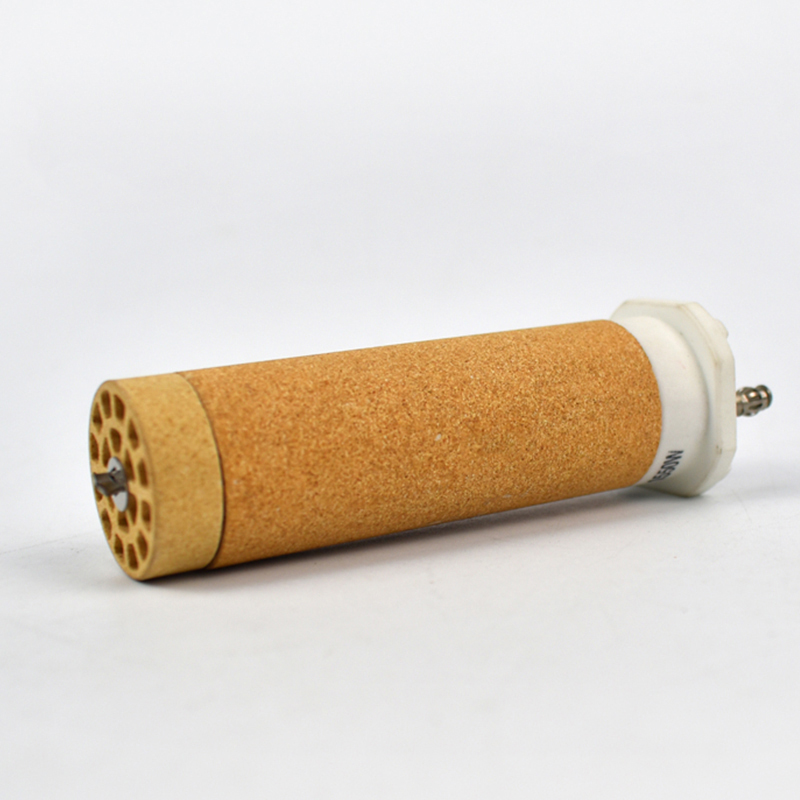

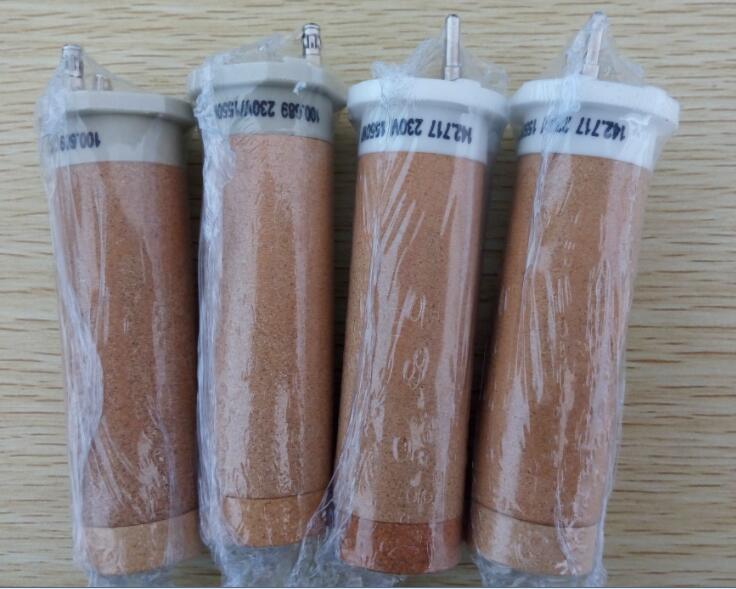

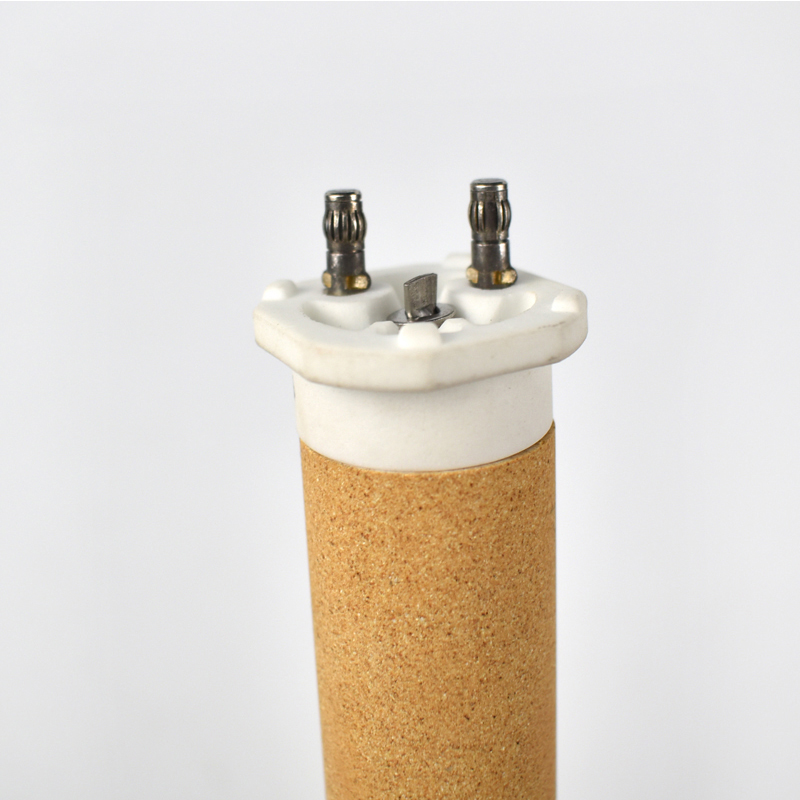

Product pictures
Application
Leister heating element can be used as spare parts for Leister hot air gun, plastic welding gun and hot wind machine.
More similar products

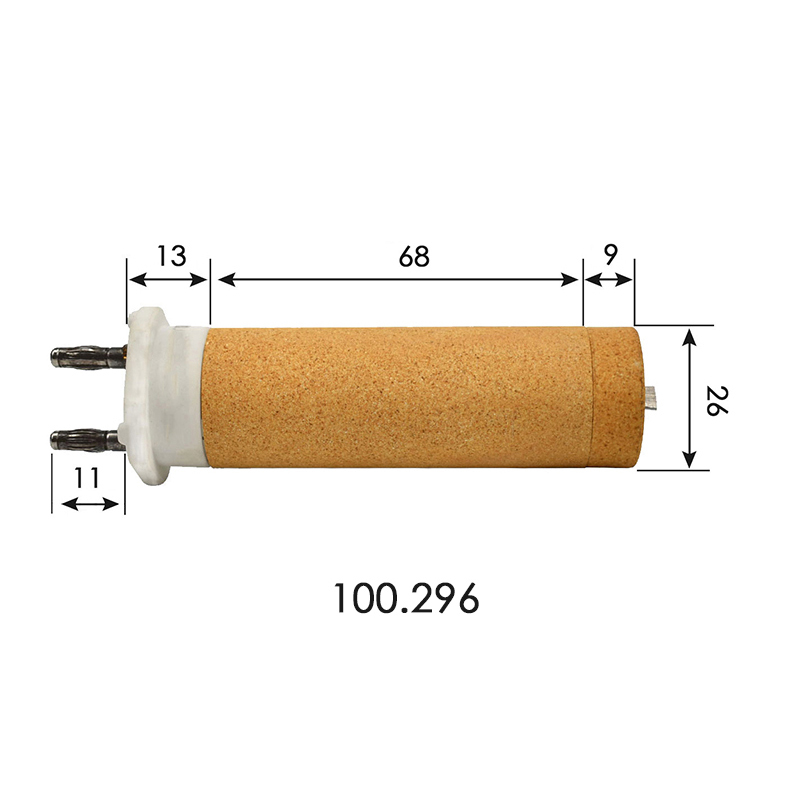

For diameter 26mm heating elements, the types are following:
| # | diameter | length of hot zone | total length | voltage | power | type |
| 1 | 26mm | 68mm | 90mm | 230V | 1600W | TRIAC S |
| 2 | 26mm | 68mm | 90mm | 230V | 1500W | 100.296 |
| 3 | 26mm | 68mm | 90mm | 120V | 1600W | 100.650 |
| 4 | 26mm | 68mm | 90mm | 230V | 1550W | 100.689 |
| 5 | 26mm | 68mm | 90mm | 200V | 1350W | 100.701 |
| 6 | 26mm | 68mm | 90mm | 120V | 1600W | 100.702 |
| 7 | 26mm | 68mm | 90mm | 100V | 1350W | 100.703 |
| 8 | 26mm | 68mm | 90mm | 230V | 1550W | 101.26 |
| 9 | 26mm | 68mm | 90mm | 230V | 1550W | 114.916 |
| 10 | 26mm | 68mm | 90mm | 230V | 1550W | 136.916 |
| 11 | 26mm | 68mm | 90mm | 230V | 1550W | 142.637 |
| 12 | 26mm | 68mm | 90mm | 120V | 1550W | 142.638 |
| 13 | 26mm | 68mm | 90mm | 100V | 1350W | 142.639 |
| 14 | 26mm | 68mm | 90mm | 230V | 1550W | 142.717 |
| 15 | 26mm | 68mm | 90mm | 230V | 1550W | TYP 33 |
Also provide kinds of leister heating elements with diameter 16.5mm, 26mm,31.5mm,33.5mm, 44mm,47mm,55.5mm and 85mm.
Optional

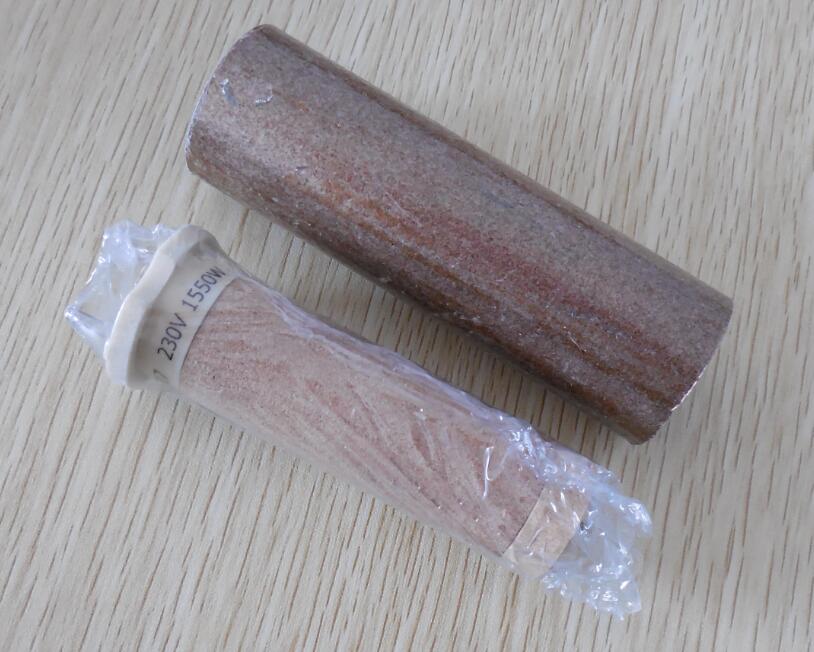

mica insulation sleeve

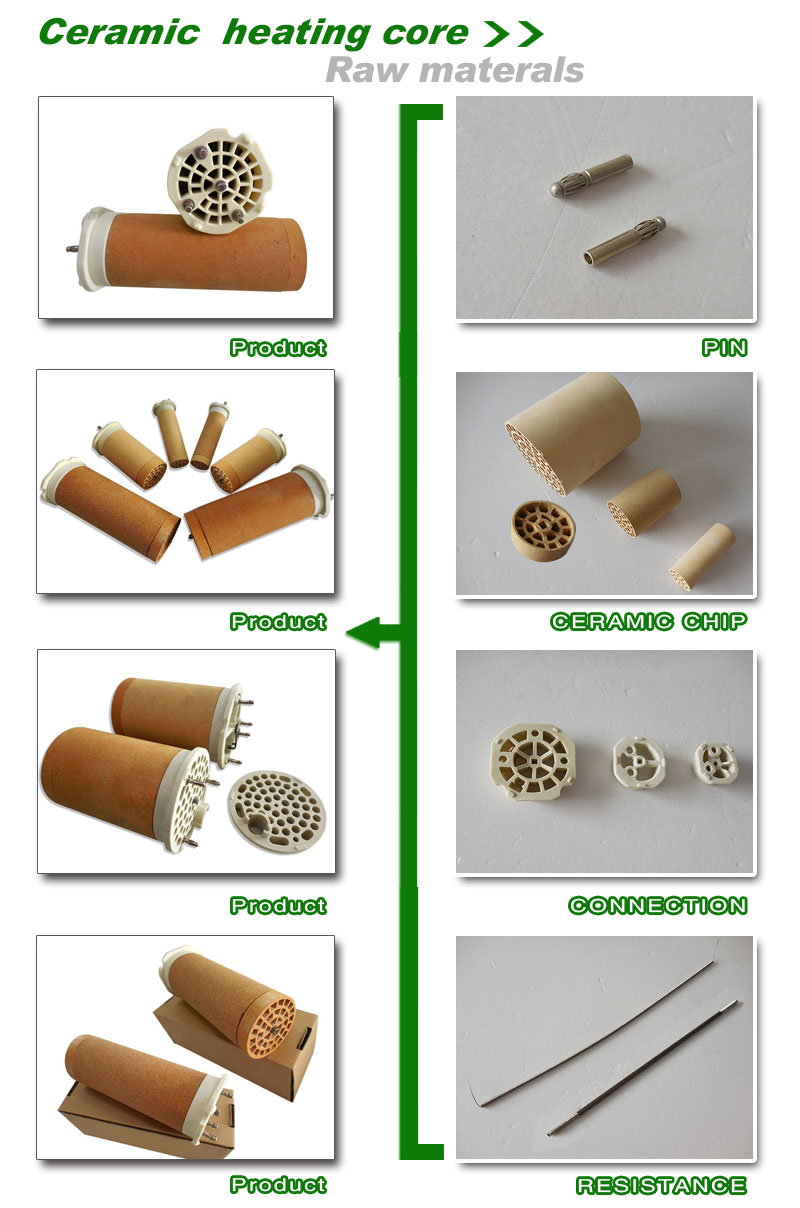

Raw material of heating elements for reference
Package
