| Name: | 101.767 230V 3600W heating elements for Leister hot air gun |
| Diameter: | 44mm |
| Voltage: | 230V |
| Power: | 3600W |
| Heat Length: | 60mm |
| Total Length: | 85mm |
| Resistance: | Kanthal |
| Order No.: | 101.767 |
| Application: | for Leister hot air gun |
| OEM: | Yes |
| Transport: | By express or by sea |
| Lead time: | 3 working days after got the payment |
| Weight; | 0.5kg |
| Package: | carton box(for small order) / wooden box(for bulk order) |
101.767 230V 3600W heating elements for Leister hot air gun

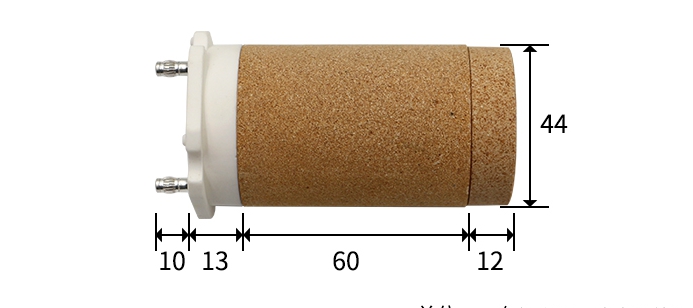

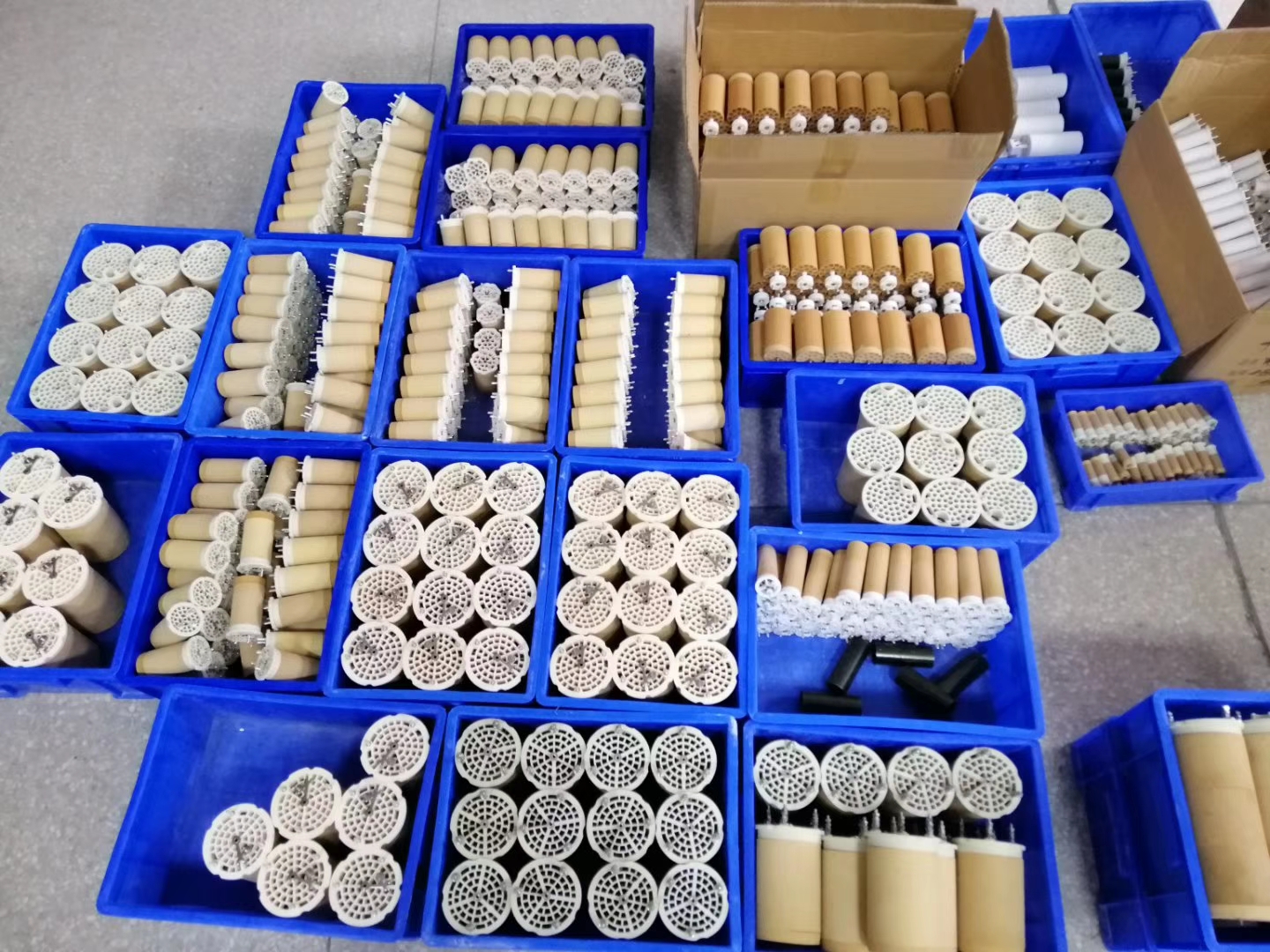

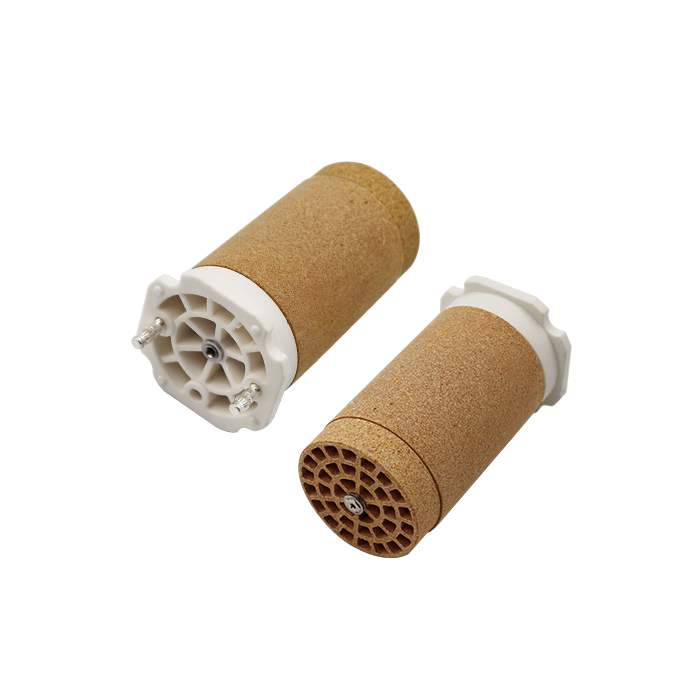

Product pictures
Application
These heating element can be used as spare parts for Leister hot air gun, plastic welding gun and hot wind machine.
More similar products
For diameter 44mm heating elements, the types are following:
| # | Item number | Voltage | Power | Diameter |
| 1 | 101.767 | 230V | 3600W | 44mm |
| 2 | 101.774 | 230V | 3300W | 44mm |
| 3 | 101.776 | 230V | 2200W | 44mm |
| 4 | 101.786 | 400V | 4400W | 44mm |
| 5 | 101.788 | 400V | 4000W | 44mm |
| 6 | 103.440 | 230V | 1650+1650W | 44mm |
| 7 | 103.588 | 120V | 2600W | 44mm |
| 8 | 107.612 | 230V | 2200+2200W | 44mm |
| 9 | 107.613 | 380V | 2750+2750W | 44mm |
| 10 | 113.268 | 230V | 1100+1100W | 44mm |
| 11 | 113.269 | 230V | 1650+1650W | 44mm |
| 12 | 117.593 | 230V | 2000W | 44mm |
| 13 | 117.599 | 3*400V | 4000W | 44mm |
| 14 | 123.561 | 230V | 1750W | 44mm |
| 15 | 124.322 | 230V | 3300W | 44mm |
| 16 | 132.387 | 230V | 3600W | 44mm |
| 17 | 143.240 | 400V | 4400W | 44mm |
| 18 | 143.283 | 230V | 3600W | 44mm |
| 19 | 145.604 | 120V | 2300W | 44mm |
| 20 | 145.606 | 230V | 3300W | 44mm |
| 21 | 148.518 | 230V | 4400W | 44mm |
| 22 | TYP30A | 230V | 3300W | 44mm |
| 23 | TYP32A | 230V | 3600W | 44mm |
| 24 | TYP32A | 400V | 4400W | 44mm |
| 25 | TYP39A | 230V | 4400W | 44mm |
| 26 | TYP39A | 230V | 5500W | 44mm |
| 27 | TYP39A | 400V | 5000W | 44mm |
Also provide kinds of leister heating elements with diameter 16.5mm, 26mm,31.5mm,33.5mm, 44mm,47mm,55.5mm and 85mm.
Optional

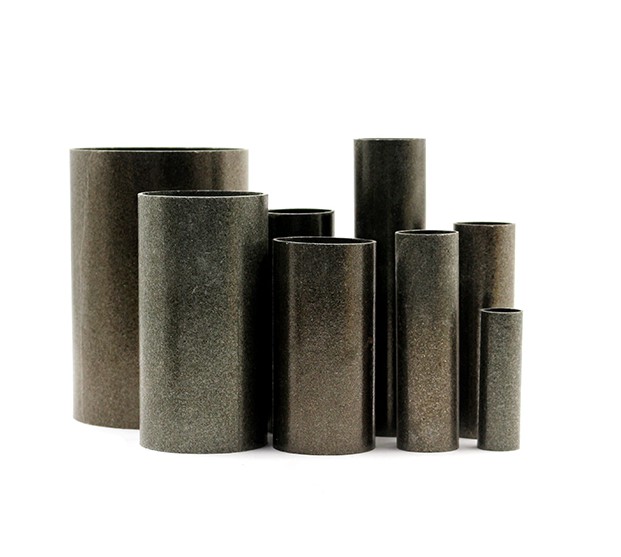

mica insulation sleeve
