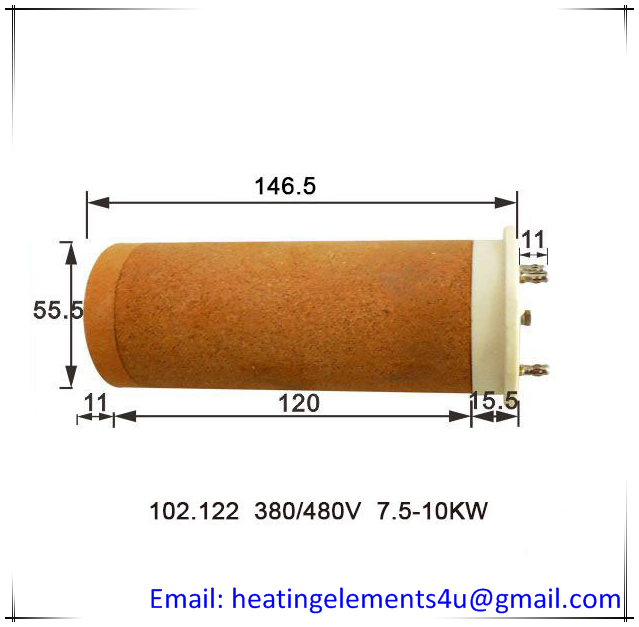

| Name: | 102.122 380/480V 7.5-10KW heating elements for Leister |

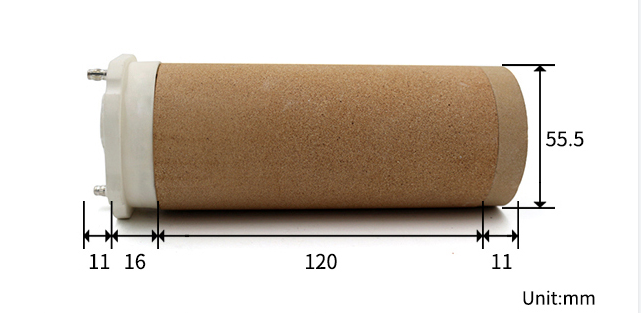

| Diameter: | 55.5mm |
| Voltage: | 380/480V |
| Power: | 7.5-10KW |
| Heat Length: | 120mm |
| Total Length: | 146.5mm |
| Resistance: | Kanthal |
| Order No.: | 102.122 |
| Application: | for Leister hot air gun |
| OEM: | Yes |
| Transport: | By express or by sea |
| Lead time: | 3 working days after got the payment |
| Weight; | 0.7kg |
| Package: | carton box(for small order) / wooden box(for bulk order) |
102.122 380/480V 7.5-10KW heating elements for Leister

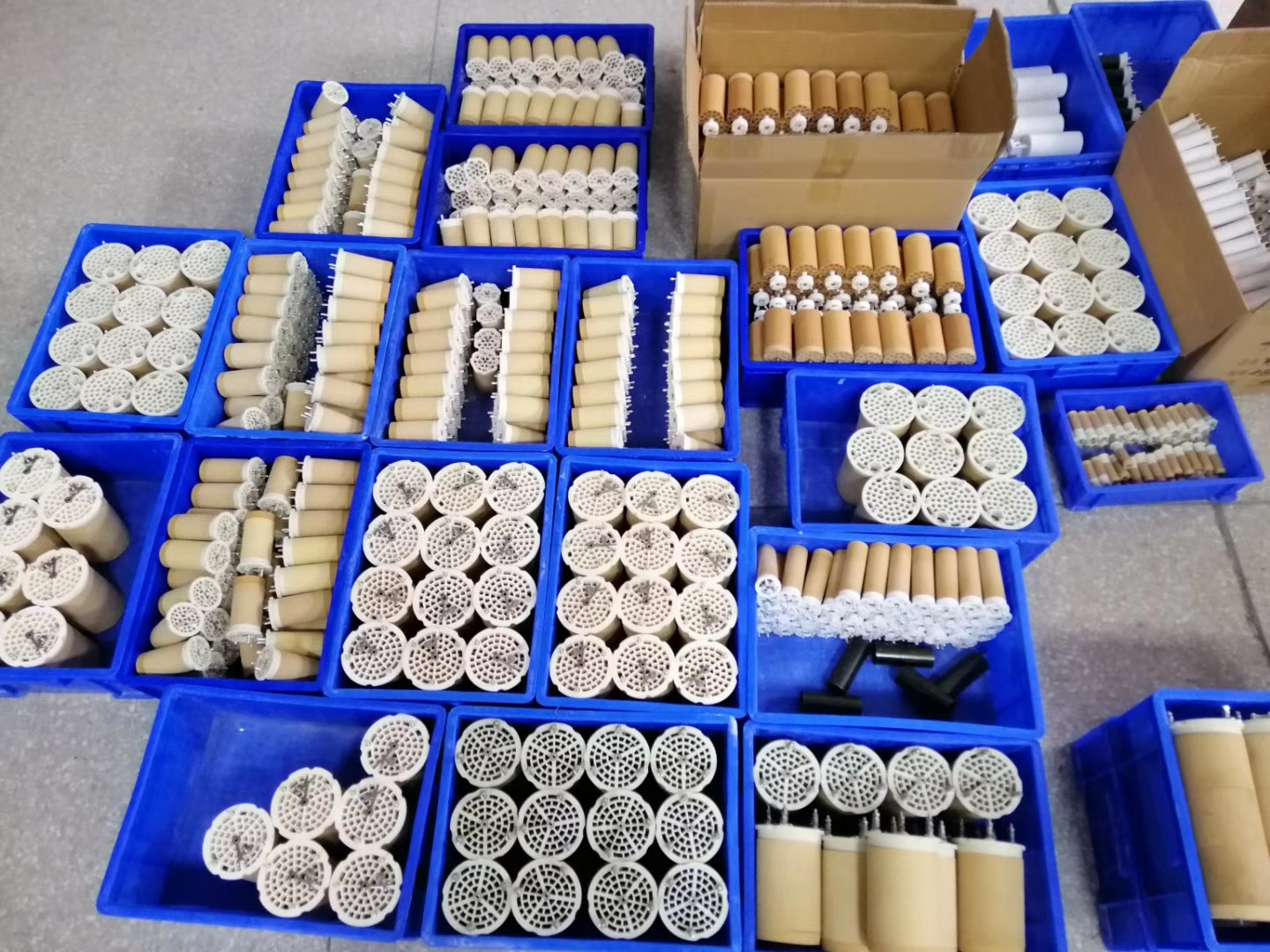

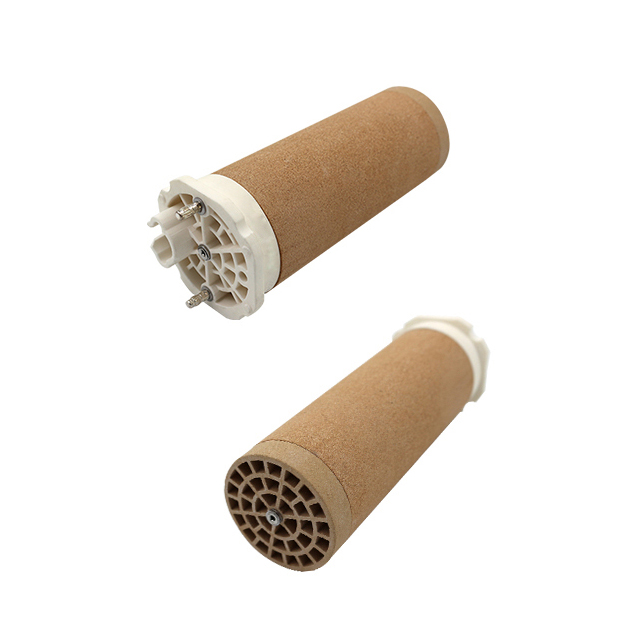

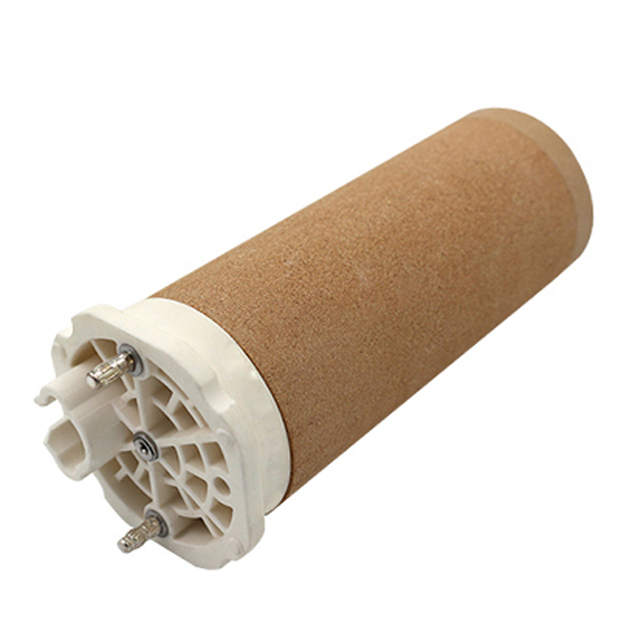

Product pictures
Application
Leister heating element can be used as spare parts for Leister hot air gun, plastic welding gun and hot wind machine.
More similar products
For diameter 55.5mm heating elements, the types are following:
| # | Item number | Voltage | Power | Diameter |
| 1 | 102.045 | 230V | 4400W | 55.5mm |
| 2 | 102.099 | 3*400V | 3*2200W | 55.5mm |
| 3 | 102.101 | 3*400V | 3*2500W | 55.5mm |
| 4 | 102.108 | 380-440V | 5-6.7KW | 55.5mm |
| 5 | 102.122 | 380-440V | 7.5-10KW | 55.5mm |
| 6 | 102.362 | 230V | 3600W | 55.5mm |
| 7 | 103.676 | 3*400V | 10.8KW | 55.5mm |
| 8 | 117.607 | 3*400V | 6KW | 55.5mm |
| 9 | 126.386 | 230V | 6500W | 55.5mm |
| 10 | 132.391 | 3*400V | 9KW | 55.5mm |
| 11 | 140.822 | 400V | 5300W | 55.5mm |
| 12 | 143.494 | 3*400V | 9KW | 55.5mm |
| 13 | 143.530 | 230V | 3600W | 55.5mm |
| 14 | 143.716 | 3*400V | 9KW | 55.5mm |
| 15 | TYP38B3 | 3*220V | 3*2500W | 55.5mm |
| 16 | TYP38B3K | 3*400V | 3*2700W | 55.5mm |
| 17 | TYP38B4 | 380-440V | 5-6.7KW | 55.5mm |
| 18 | TYP38B5 | 380-440V | 7.5-10KW | 55.5mm |
| 19 | TYP38D1 | 230V | 3600W | 55.5mm |
| 20 | TYP38D3 102.552 | 380-440V | 5.3KW | 55.5mm |
| 21 | TYP38D4 | 120V | 2200W | 55.5mm |
Also provide kinds of leister heating elements with diameter 16.5mm, 26mm,31.5mm,33.5mm, 44mm,47mm,55.5mm and 85mm.
Optional

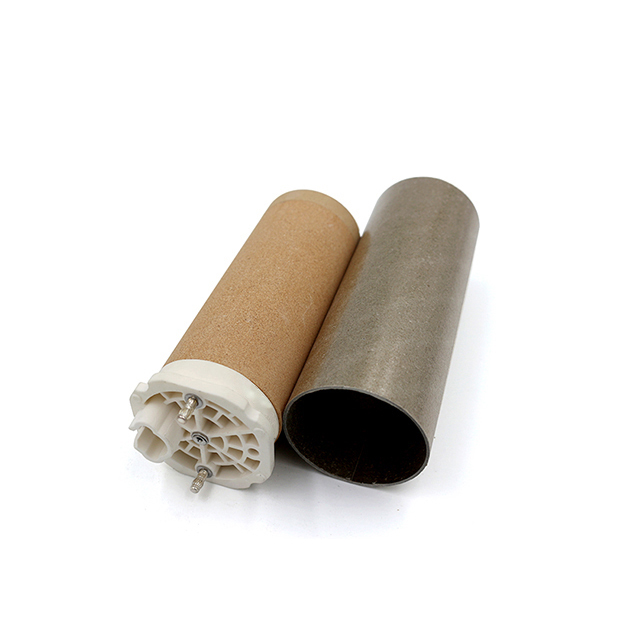

mica insulation sleeve
