| Name: | Industrial flat nichrome wire Cr20Ni80 heating wire |
| Model Number: | 1Cr13AI4, 0Cr21AI4, 0Cr21AI6, 0Cr25AI5 |
| Type: | insulated |
| Application: | heating, heating elements |
| Shape: | round or flat |
| Conductor Material: | copper clad aluminum |
| Conductor Type: | solid |
| Dimensions: | 0.05-12mm |
| Brand: | JingHe |
| Color: | sliver or polish |
| Lead time: | 5 working days after got the payment |
| Transport: | By express or by sea |
| Package; | spool+plastic bag+carton+pallet |
| Key words: | heating wire |
Industrial flat nichrome wire Cr20Ni80 heating wire

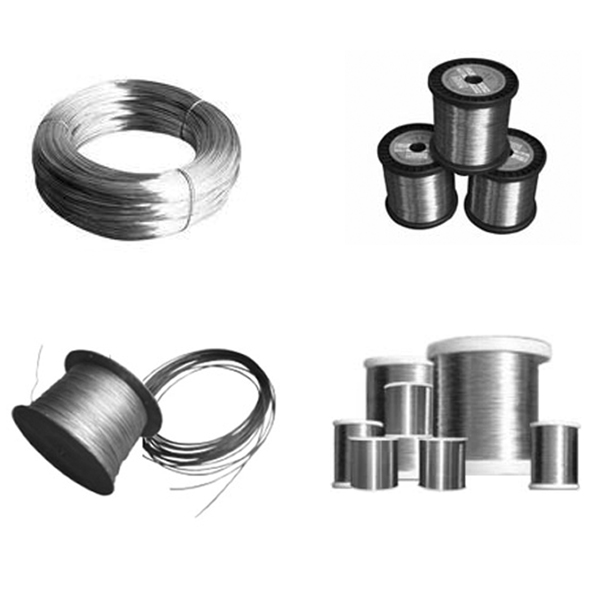

Product pictures:
About products:
1.FeCrAl Electrictrical Resistance Heating alloys with high electrical resistivity, temperature coefficient of resistance is small, high operating temperature. good corrosion resistance under high temperature, and particularly suitable for use in a gas containing sulfur and sulfides, low price, it is widely used in industrial electric furnace, household appliances, far infrared device ideal heating material.
FeCrAl type:1Cr13AI4, 0Cr21AI4, 0Cr21AI6, 0Cr25AI5, 0Cr21AI6 Nb, 0Cr27AI7Mo2 etc.Series electric flat belt, electric fire wire
2.Nickel chromium alloy with iron resistance electrothermal high resistivity, surface body sexual well. At high temperature and high intensity, and a good performance and processing may welding nature widely used metallurgical, electrical, mechanical components and electrical manufacturing industries for doing heat resistance material.
Ni-Cr Type:Cr20Ni80,Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr25Ni20 etc.Series electric flat belt, electric fire wire.
Application:
Resistance alloy wire is used for electrical heating element.
Widely used in metallurgy, industrial stoves, household appliances, machinery and electronics manufacturing industries do heat resistance material.
Product size:
Round wire dia.0.05—12mm;
flat strip thickness0.03—5mm,flat strip width0.2—500mm.
Standard Specification:
Grade |
Ni80Cr20 |
Ni70Cr30 |
Ni60Cr15 |
Ni35Cr20 |
Ni30Cr20 |
|
Chemical composition % |
Ni |
Balance |
Balance |
55.0~61.0 |
34.0~37.0 |
30.0~34.0 |
|
Cr |
20.0~23.0 |
28.0~31.0 |
15.0~18.0 |
18.0~21.0 |
18.0~21.0 |
|
Fe |
≤1.0 |
≤1.0 |
Balance |
Balance |
Balance |
Highest service temperature °C |
1200 |
1250 |
1150 |
1100 |
1100 |
|
Melting point °C |
1400 |
1380 |
1390 |
1390 |
1390 |
|
Density g/cm3 |
8.40 |
8.10 |
8.20 |
7.90 |
7.90 |
|

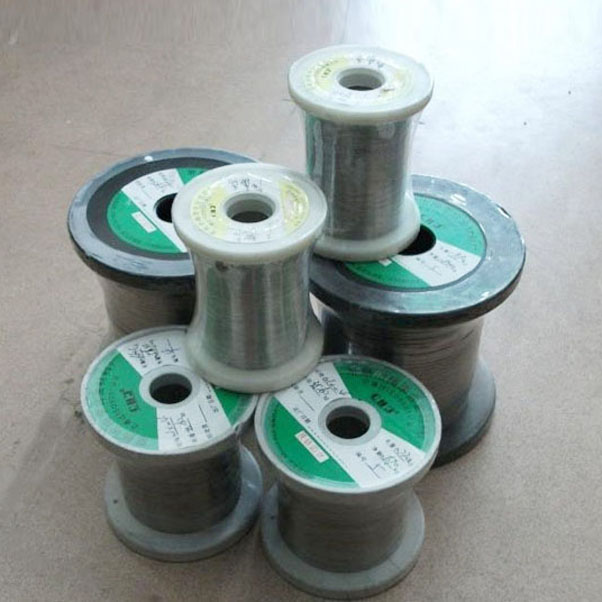

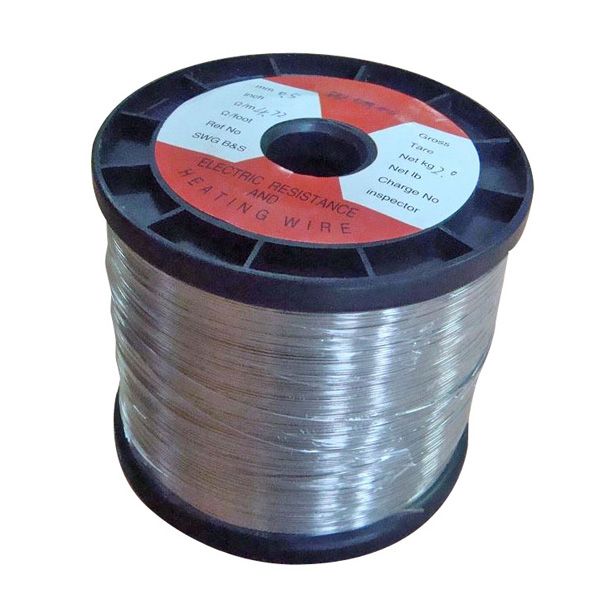

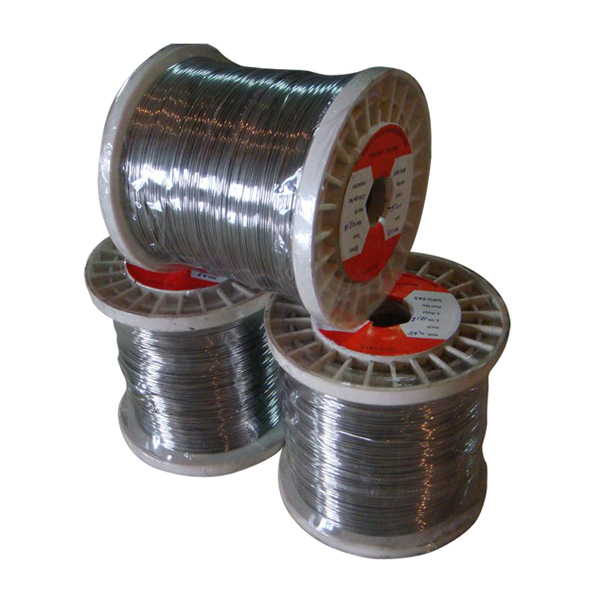

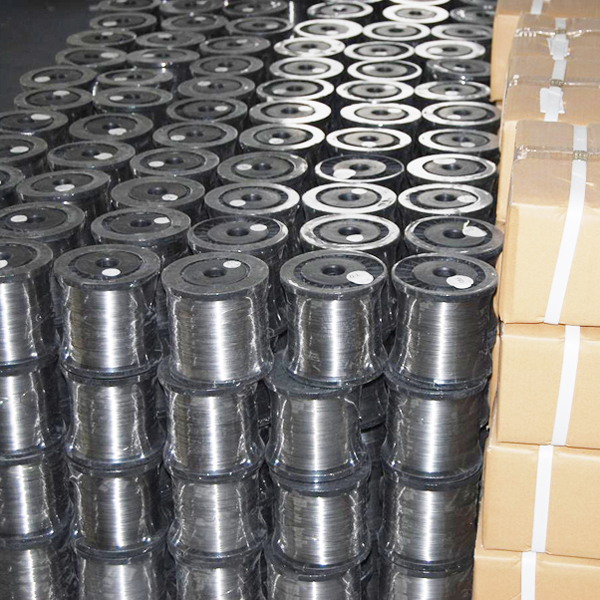

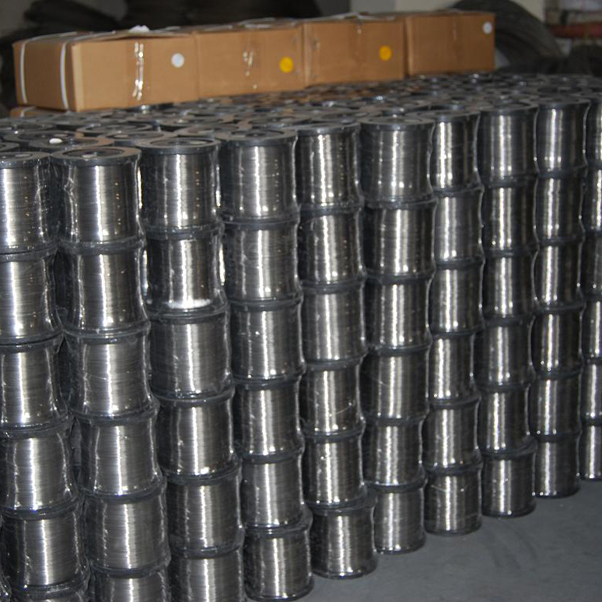

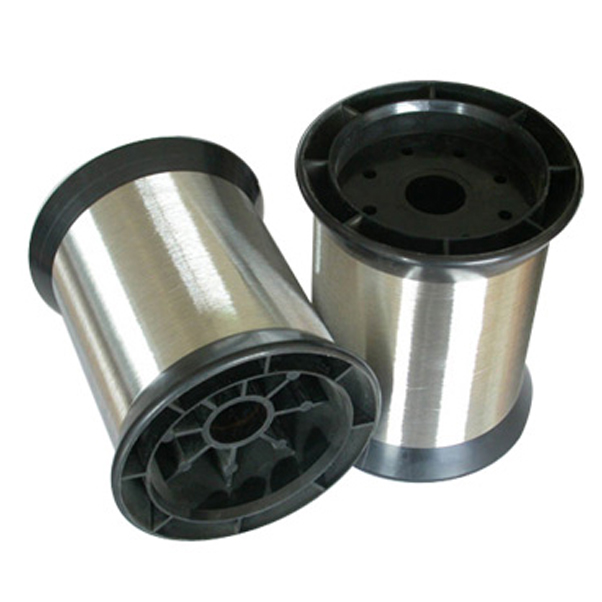

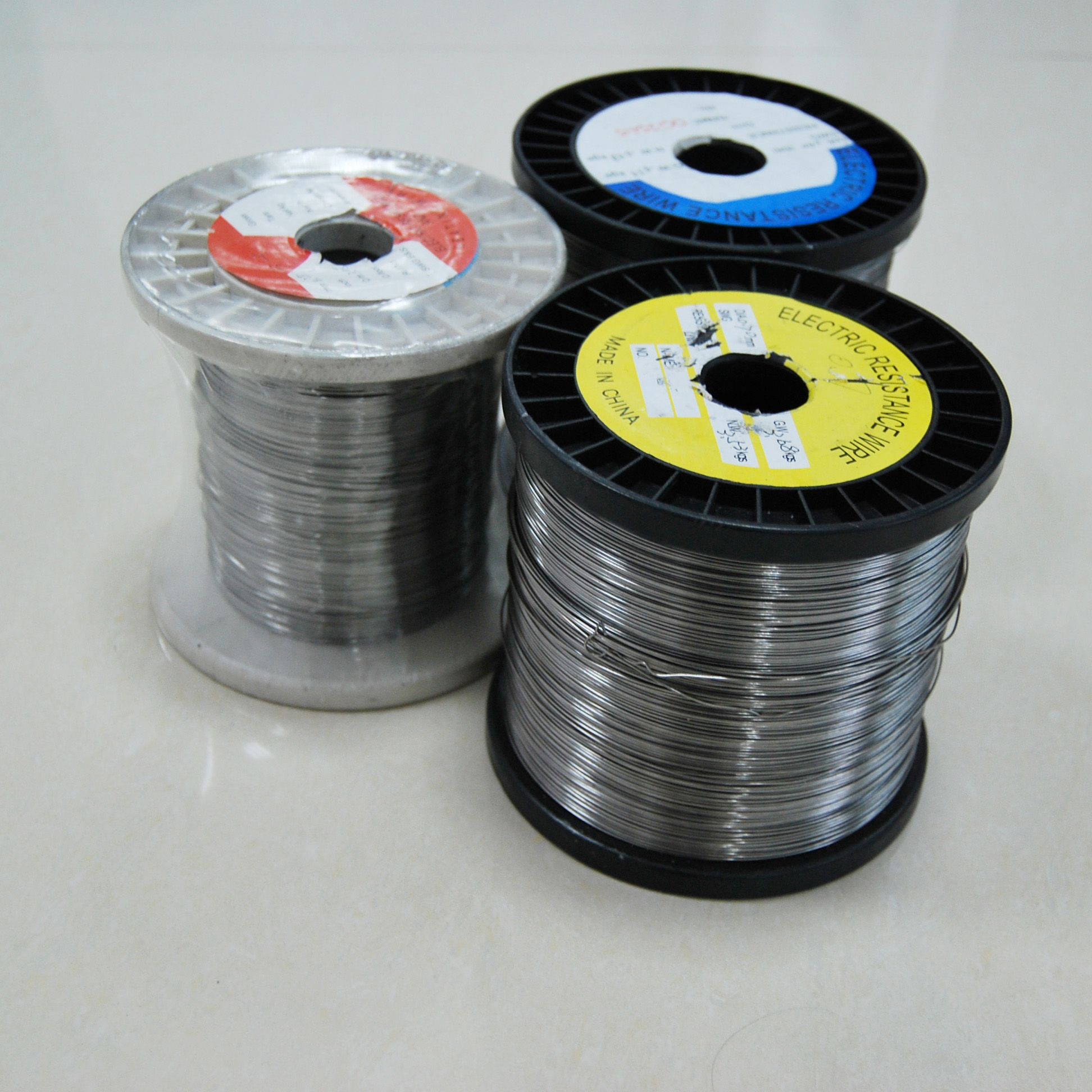

More Pictures:
