TYP5000 air heater hot air blower plastic welding machie for pearl cotton industry

Home / Product Center >> Hot air heater >> TYP5000 air heater hot air blower plastic welding machie for pearl cotton industry

Name:	TYP5000 air heater hot air blower plastic welding machie for pearl cotton industry
Item number:	TYP5000
Item number:	LE5000
Voltage:	380-480V
Power:	5-10KW
Current:	13-23a
Frequency:	50-60hz
Power Source:	Electric

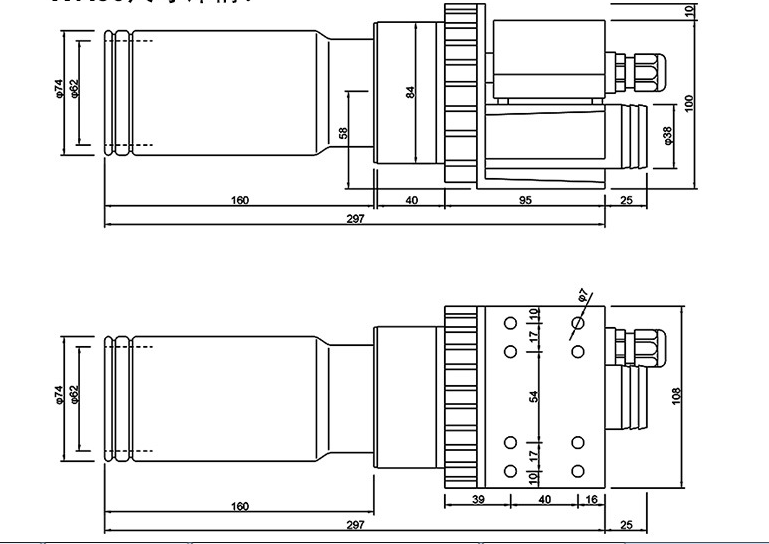

Dimension(L×W×H):	51cm×21cm×22cm
Weight:	3.5kg
Temperature control:	with/without
Condition:	New
Type;	Air Heater
Place of Origin:	Jiangsu, China

Product Description

The air heater LE 5000 is equipped with a performance range of 4.5 kW at 230 V, of 5.5 kW and 8.5 kW at 400 V, as

well as 8.0 kW at 480 V. The air outlet connections are compatible with the successor LHS 60S and its accessories.

It is also available as a version for a supply temperature of up to 160°C, and is therefore especially suitable for

recycling applications.

Combination possibilities

Air heater with blower at maximum heat power. Hot-air temperature 3 mm

after air outlet, measured at the hottest point, at hose length 3 m and unimpeded air outflow.

Air flow in l/min when air heater is not heated and air inlet temp. is 20 °C.

Power Type	Number LE× Power consumption W	Air flow l/min	Temperature °C
Silence	1 × 5000	1 × 870	560
Silence	2 × 5000	2 × 860	570
Silence	2 × 7500	2 × 1080	580
ASO	4 × 5000	4 × 1100	420
ASO	4 × 8000	4 × 1350	560
AIRPACK	4 × 5000	4 × 800	540
AIRPACK	6 × 5000	6 × 550	600

Air flow and temperature specifications may deviate from ideal values due to modifications

of the hot-air system (nozzles, hose length, etc.)

We also offer hot air gun, hot air heater, hot air blower that can replace Weldy HT1600, Leister LHS21L, LHS61L, LE 5000 DF, LE 10000 DF-C, LE 10000 S, LE 10000 HT and etc.

Please contact us directly for more details.
